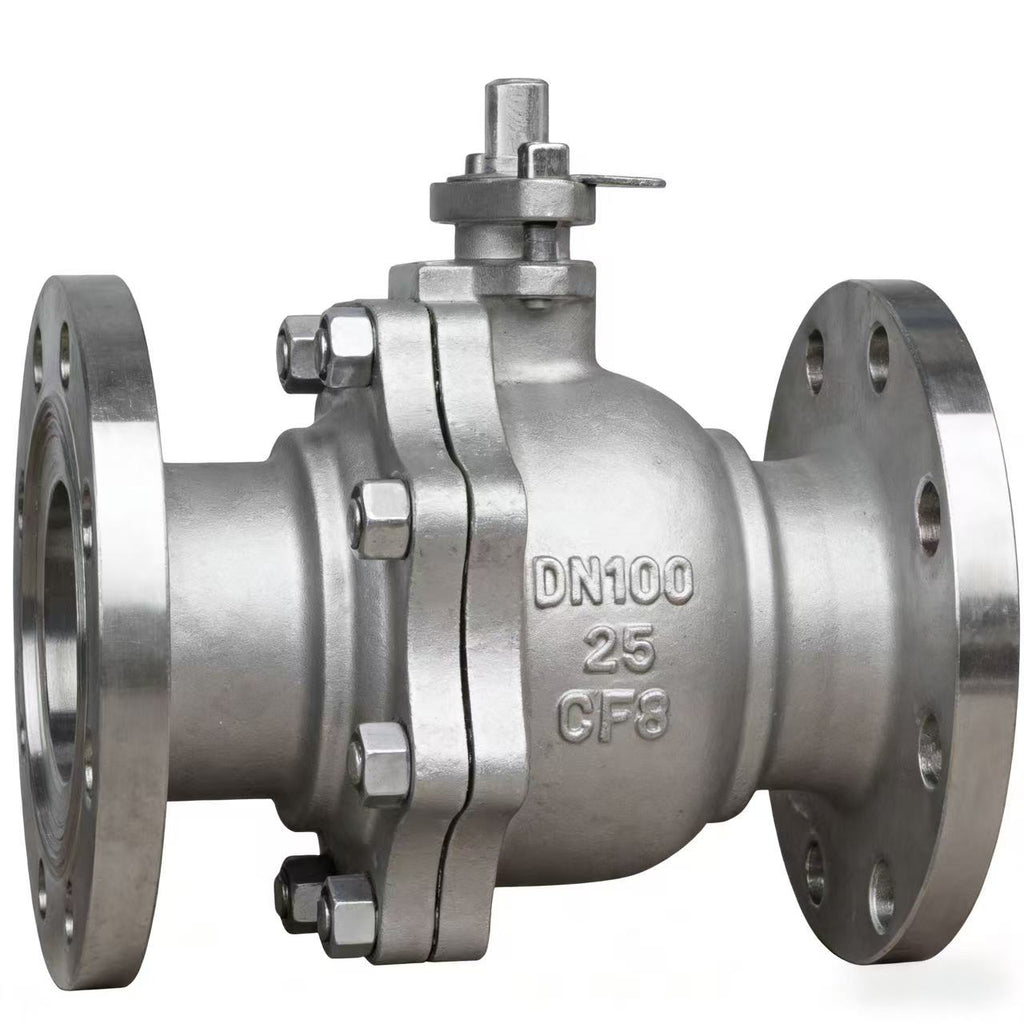

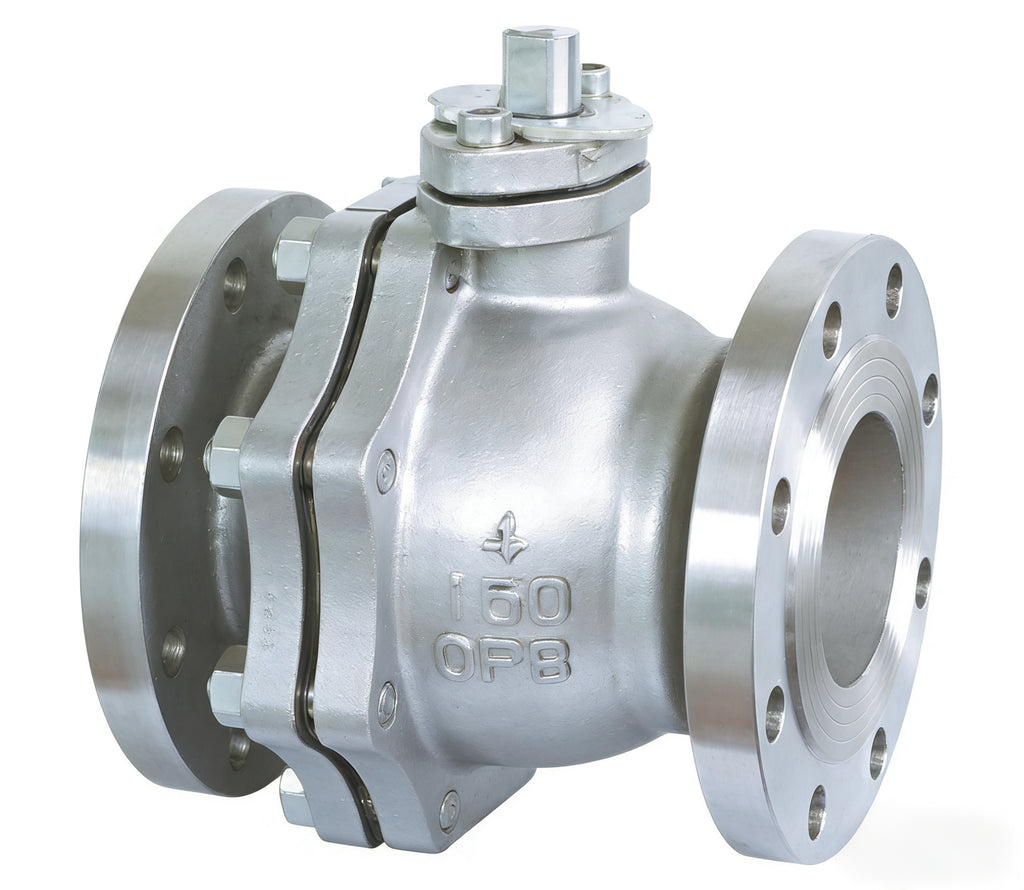

Floating ball valve

The ball valve is mainly used to cut off or connect the medium in the pipeline, and can also be used for the regulation and control of the fluid. The hard-sealed V-shaped ball valve has a strong connection between the V-shaped ball core and the metal valve

design standards

Technical Specifications: American Standard

Design standard: API6D API608

Construction Length: ASME B16.10

Connection flange: ASME B16.5

Test and inspection: API6D API598

Performance Specifications

Nominal pressure: 150,300,600LB

Strength test: PT3.0, 7.5, 15MPa

Sealing test: 2.2, 5.5, 11MPa

Upper sealing test: 2.2, 5.5, 11MPa

Air tightness test: 0.6MPa

Valve body material: WCB(C), CF8(P), CF3(PL), CF8M(R), CF3M(RL)

Applicable medium: water, steam, oil, nitric acid, acetic acid

Applicable temperature: -29℃～180℃
